Frameless Pivot Diamond Shower Screen Australian Standard 10mm Tempered Toughen Glass

Features

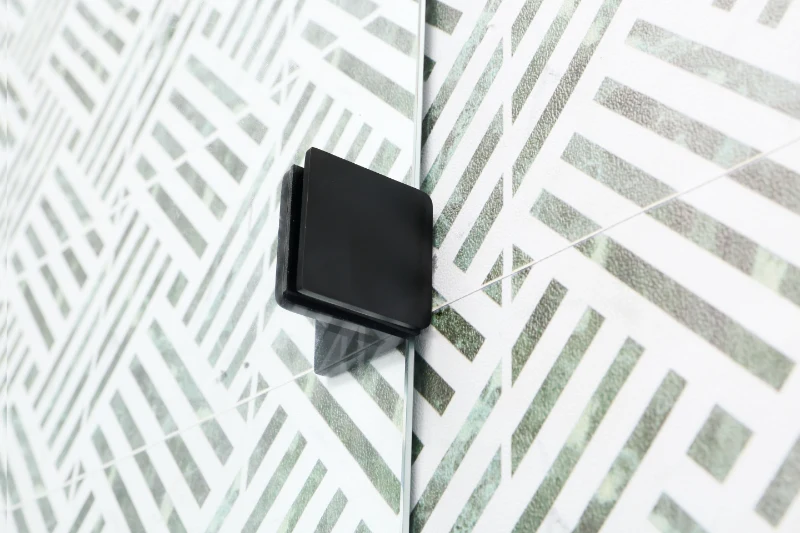

– Made from Australian Standard tempered glass and Solid Brass fitting materials
– Fitting finishes colors available with 7 colors refer to Color Option
– Nano-coating is optional for all glass with extra charge
– Can be installed to fit different irregular wall length
– Exact floor angle dimensions are available to provide for drawing
– Reversible installation is available
– Magnetic strip to be installed between door panel and fix panel to prevent water leaking

Color options

Chrome

Matt Black

Brushed Nickel

Gun Metal

Brushed Gold

Light Gold

Brush Bronze

Available Sizes

CVP063
TECHNICAL PARAMETERS FOR FLOORS/TILES ANGLE
SKU	EXTERNAL SIZE	INTERNAL SIZES			REMARKS
SKU	SIZES(MM)	HINGE PANEL SIDE	FIXED PANEL SIDE	DOOR PANEL	REMARKS
CVP0638080	800×800	400mm	406mm	550mm	Listed sizes are for standard sizes, if any irregular sizes such as 1200*1000mm needed, please contact supplier for glass conbination enquiries.
CVP0638181	810×810	400mm	406mm	560mm
CVP0638282	820×820	400mm	406mm	580mm
CVP0638383	830×830	400mm	406mm	590mm
CVP0638484	840×840	400mm	406mm	600mm
CVP0638585	850×850	400mm	406mm	620mm
CVP0638686	860×860	400mm	406mm	630mm
CVP0638787	870×870	400mm	406mm	645mm
CVP0638888	880×880	450mm	456mm	585mm
CVP0638989	890×890	450mm	456mm	600mm
CVP0639090	900×900	450mm	456mm	615mm
CVP0639191	910×910	450mm	456mm	630mm
CVP0639292	920×920	450mm	456mm	645mm
CVP0639393	930×930	450mm	456mm	660mm
CVP0639494	940×940	500mm	506mm	600mm
CVP0639595	950×950	500mm	506mm	615mm
CVP0639696	960×960	500mm	506mm	630mm
CVP0639797	970×970	500mm	506mm	645mm
CVP0639898	980×980	500mm	506mm	660mm
CVP0639999	990×990	550mm	556mm	600mm
CVP0631010	1000×1000	550mm	556mm	615mm
CVP063101101	1010×1010	550mm	556mm	630mm
CVP063102102	1020×1020	550mm	556mm	645mm
CVP063103103	1030×1030	550mm	556mm	660mm
CVP063104104	1040×1040	600mm	606mm	600mm
CVP063105105	1050×1050	600mm	606mm	615mm
CVP063106106	1060×1060	600mm	606mm	630mm
CVP063107107	1070×1070	600mm	606mm	645mm
CVP063108108	1080×1080	600mm	606mm	660mm
CVP063109109	1090×1090	650mm	656mm	600mm
CVP063110110	1100×1100	650mm	656mm	615mm
CVP063111111	1110×1110	650mm	656mm	630mm
CVP063112112	1120×1120	650mm	656mm	645mm
CVP063113113	1130×1130	650mm	656mm	660mm
CVP063114114	1140×1140	650mm	656mm	670mm
CVP063115115	1150×1150	650mm	656mm	685mm
CVP063116116	1160×1160	700mm	706mm	635mm
CVP0631117117	1170×1170	700mm	706mm	650mm
CVP063118118	1180×1180	700mm	706mm	660mm
CVP063119119	1190×1190	700mm	706mm	670mm
CVP063120120	1200×1200	700mm	706mm	680mm
CVP063121121	1210×1210	700mm	706mm	695mm
