Frameless Single Sliding Door Australian Standard 10mm Clear Tempered Toughen Glass Shower Screen Wall to Wall or L shape Installation

Features

– Made from Australian Standard tempered glass and #304 stainless steel fitting materials
– Fitting finishes colors available with 7 colors refer to Color Option
– Nano-coating is optional for all glass with extra charge
– Can be customized to fit different shower sizes and shapes
– Can be installed as L Shape or Wall to Wall/Inline Direction

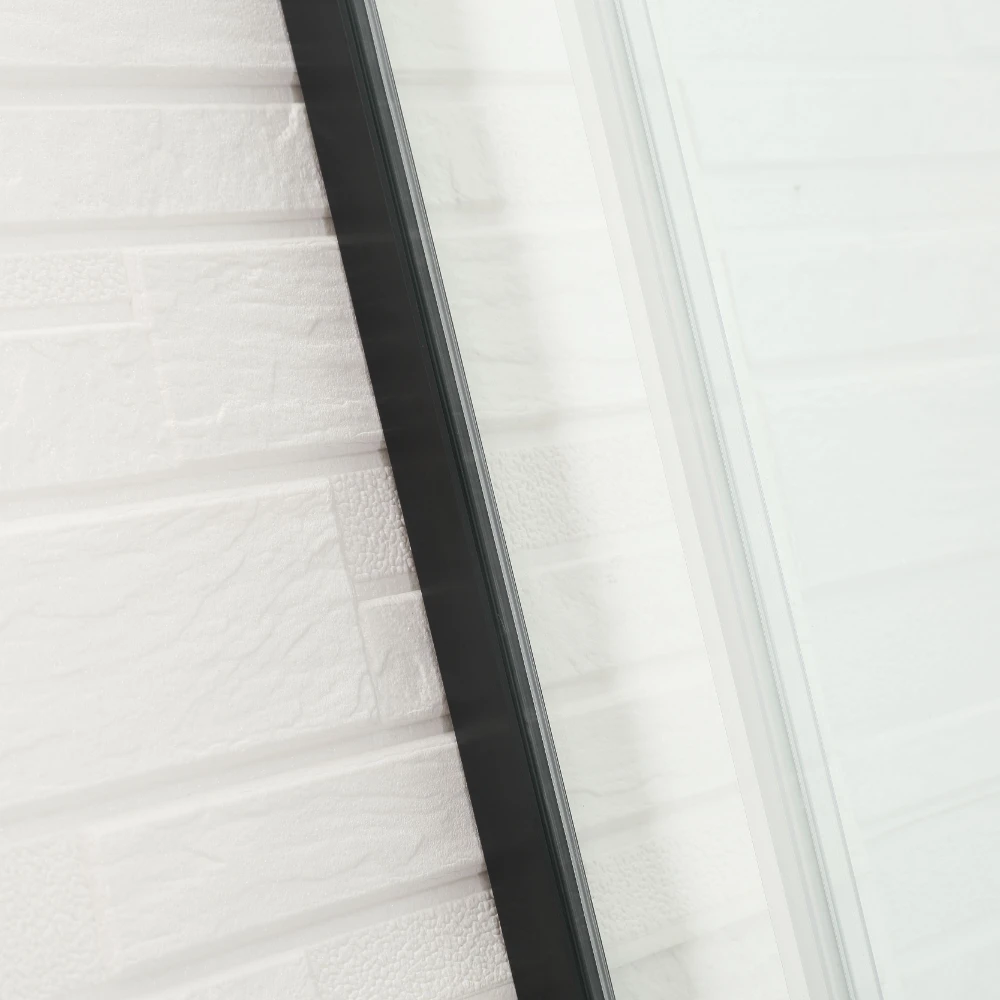

– Normal Wall channel allows 10mm and 45mm wall channels allows 20mm for out-of-plumb wall adjustment
– Reversible installation is available

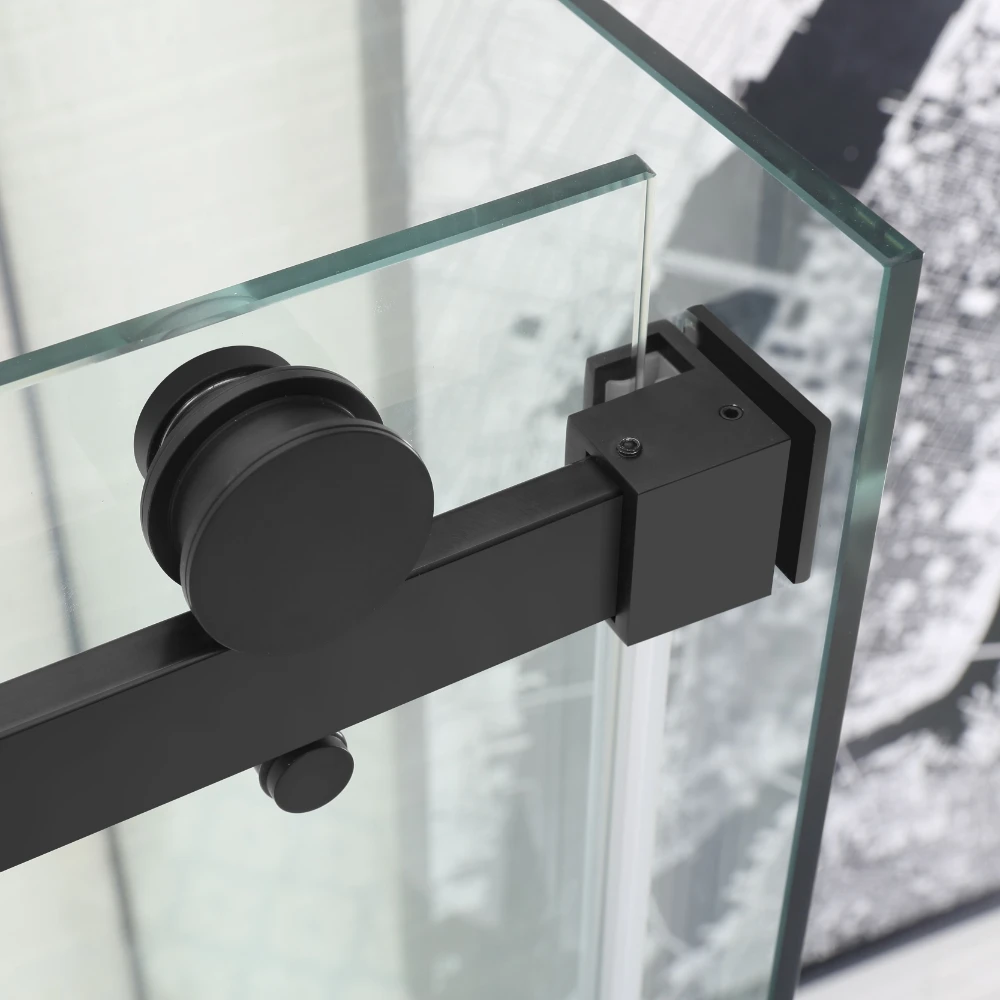

– #304 Stainless steel roller rails and special design brackets, with firm and strong rail bar, soft closing with silence.

Color options

Matt Black

Gun Metal

Available Sizes

CVP031
TECHNICAL PARAMETERS
NO	CONFIGURATION	SKU	SIZES(MM)	Door Glass （mm）	Fixed Glass（mm）	Min Open Space（mm）	Max Open Space（mm）	REMARKS
1	Front Door (Wall To Wall)	CVP031W2W1130	1180-1230 (W2W)	670mm	567mm	500mm	555mm	Square Handle \| Tinted Glass Available
2		CVP031W2W1230	1230-1300 (W2W)	694mm	617mm	526mm	601mm
3		CVP031W2W1300	1300-1450 (W2W)	769mm	692mm	521mm	676mm
4		CVP031W2W1450	1450-1650 (W2W)	869mm	792mm	571mm	776mm
5		CVP031W2W1650	1650-1800 (W2W)	944mm	867mm	696mm	851mm
6		CVP031W2W1800	1800-2000 (W2W)	944mm	1067mm	673mm	878mm		Square Handle
NO	CONFIGURATION	SKU	SIZES(MM)	REMARKS (Standard wall chanel is 18mm W, Wider wall channel is 45mm W)
7	Return Panel	CVP031RP900	900mm	Standard Max Install to be 900mm, Wider Max Install to be 935mm \| Tinted Glass Available
8	Return Panel	CVP031RP1000	1000mm	Standard Max Install to be 1010mm, Wider Max Install to be 1035mm \| Tinted Glass Available
