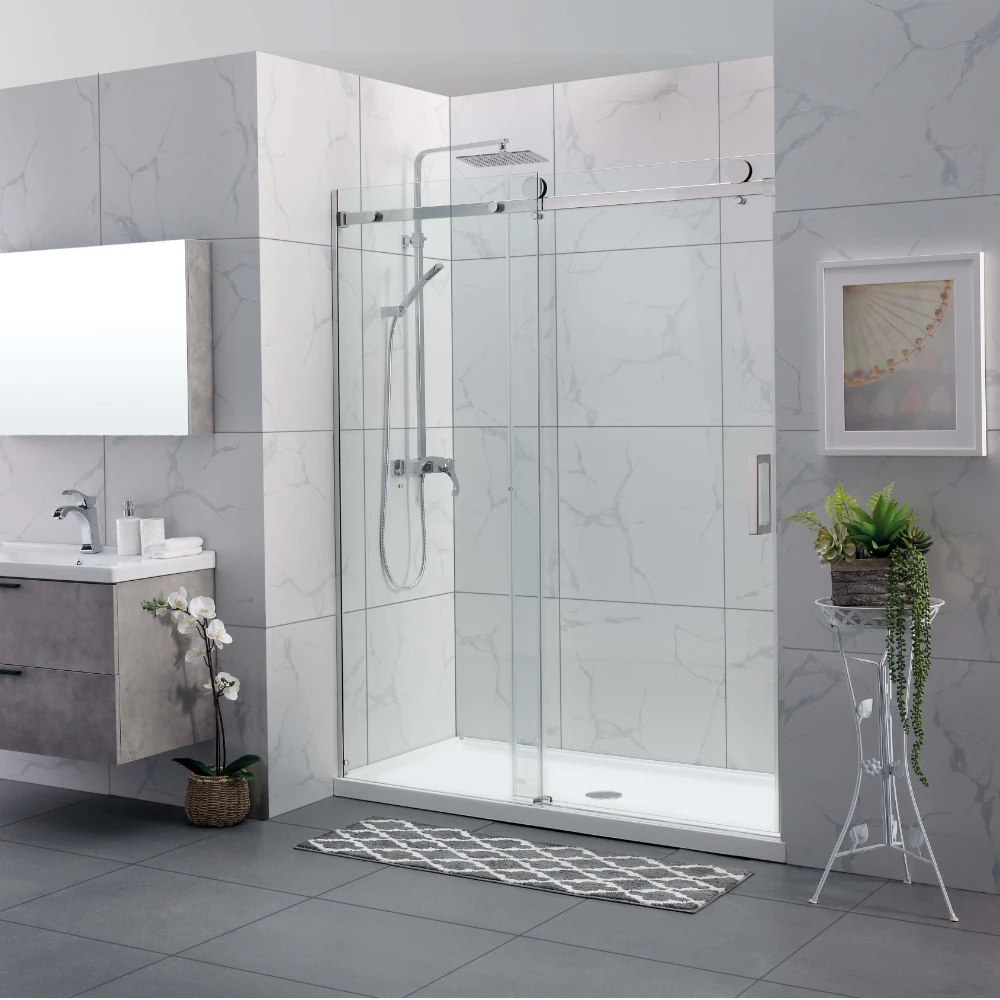

Frameless Single Sliding Door Australian Standard 10mm Clear Tempered Toughen Glass Shower Screen Wall to Wall or L shape Installation

Features

– Made from Australian Standard tempered glass and #304 stainless steel fitting materials
– Fitting finishes colors available with 7 colors refer to Color Option
– Nano-coating is optional for all glass with extra charge
– Can be customized to fit different shower sizes and shapes

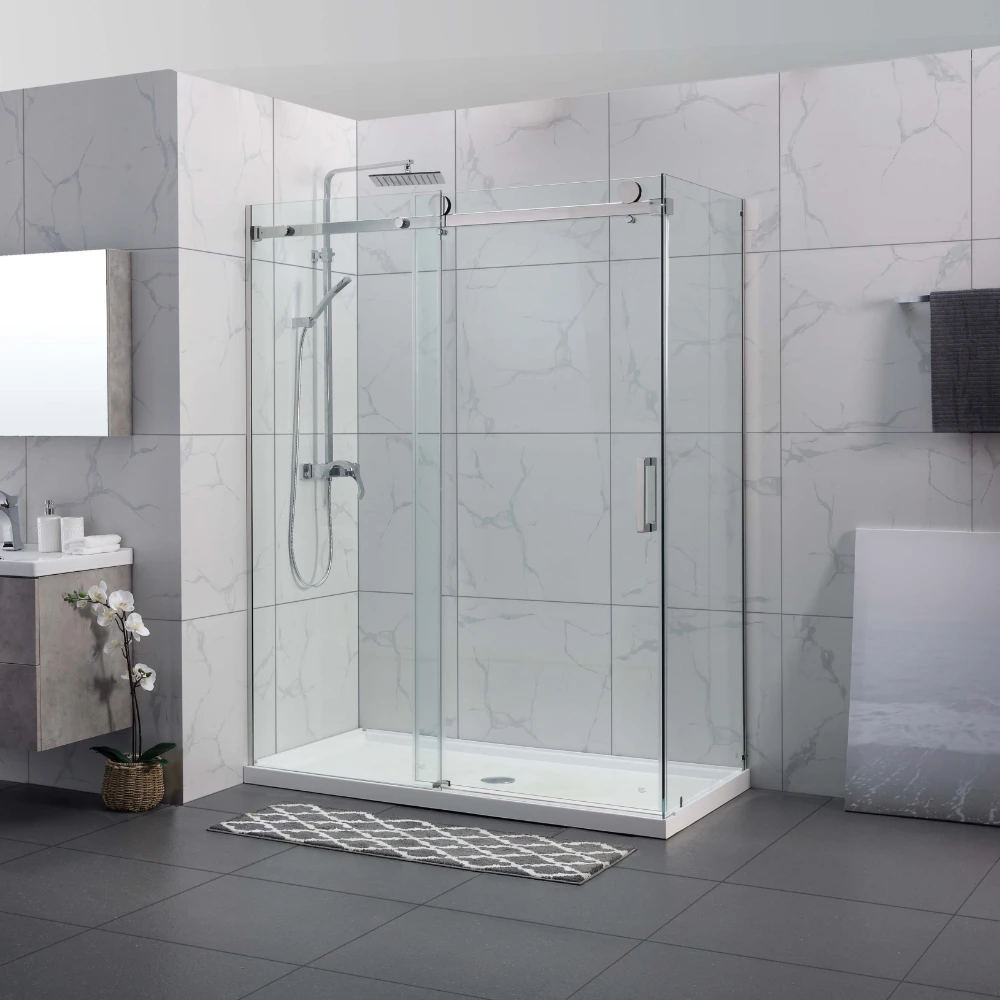

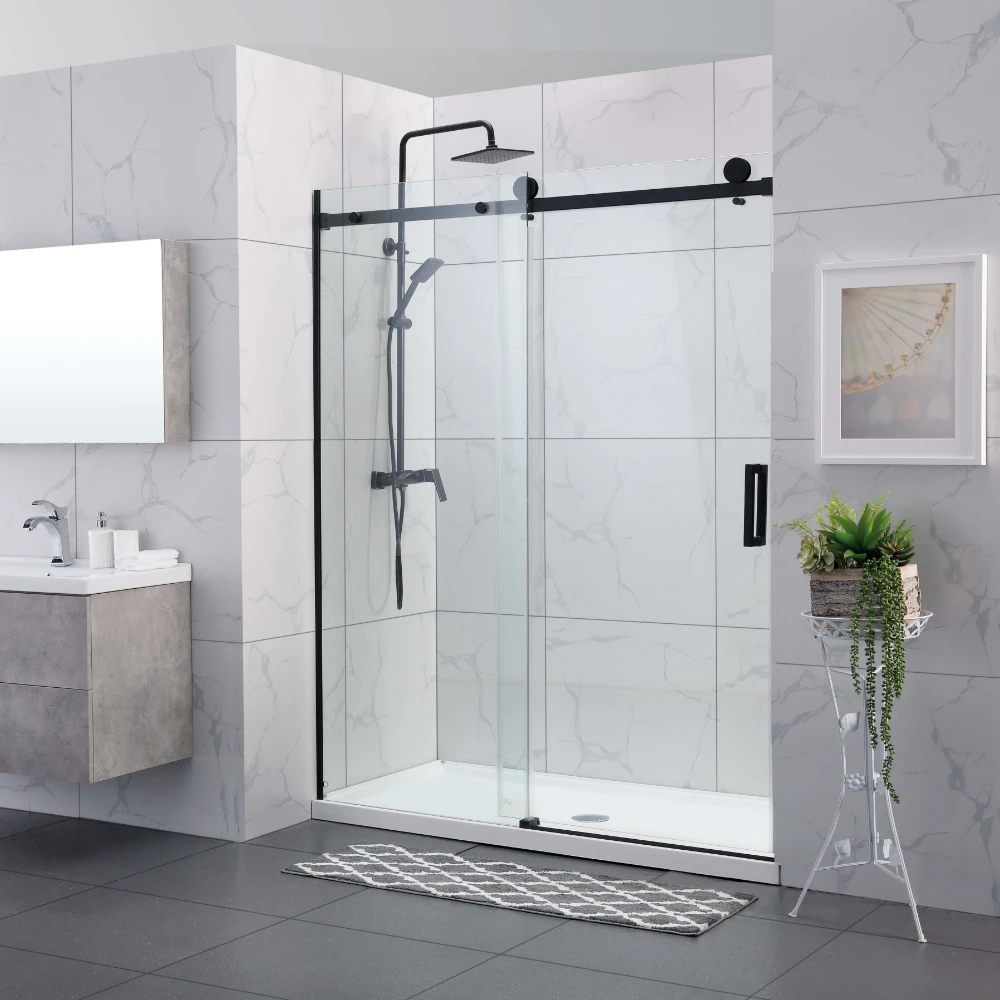

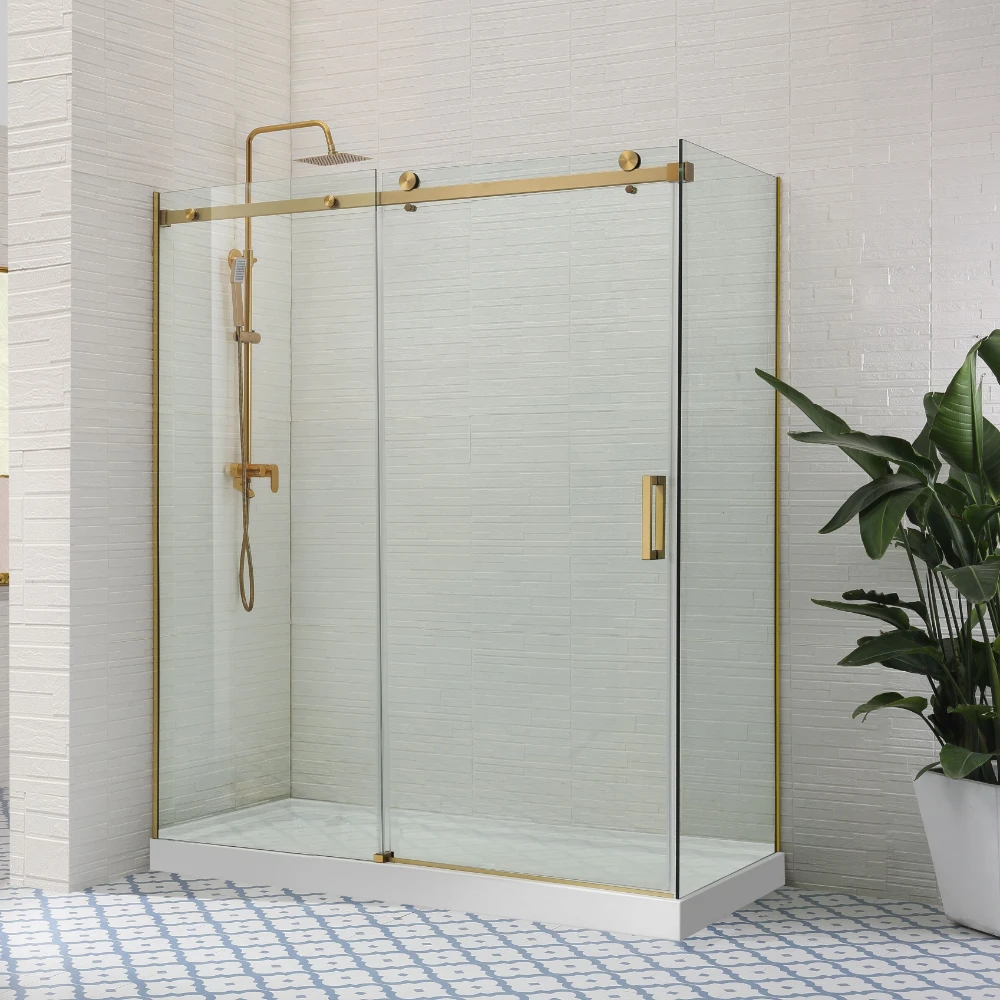

– Can be installed as L Shape or Wall to Wall/Inline Direction

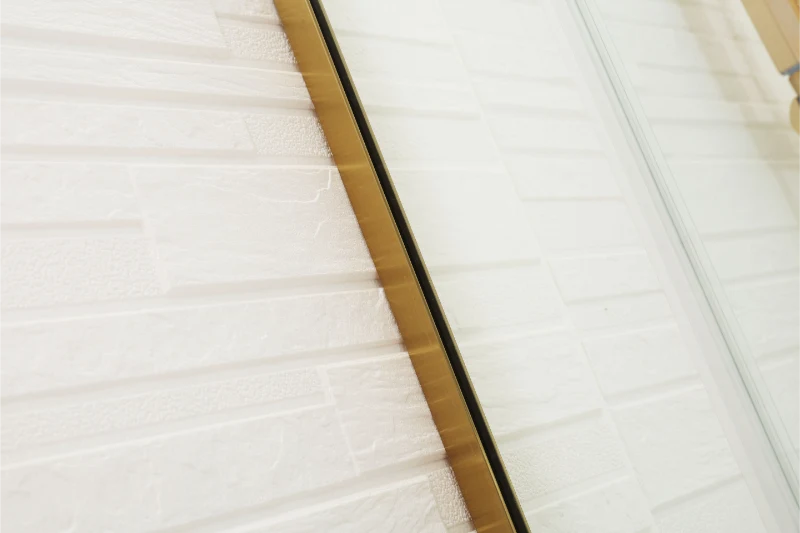

– Normal Wall channel allows 10mm and 45mm wall channels allows 20mm for out-of-plumb wall adjustment
– Reversible installation is available

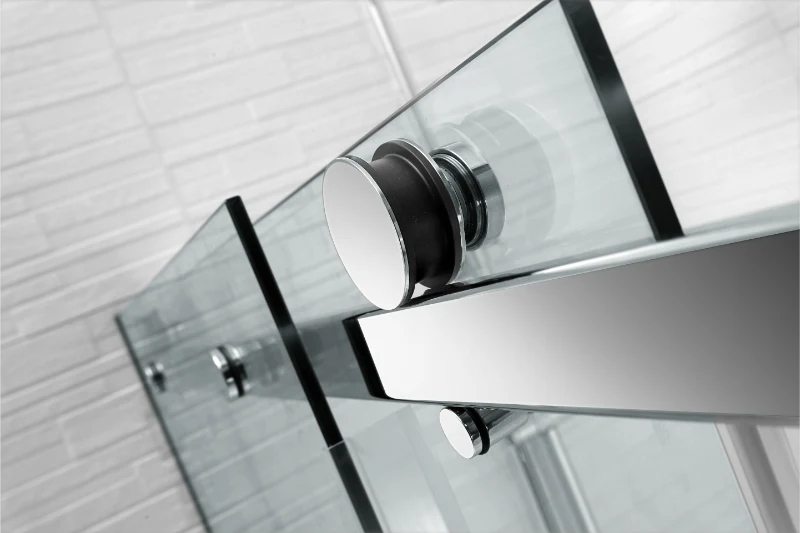

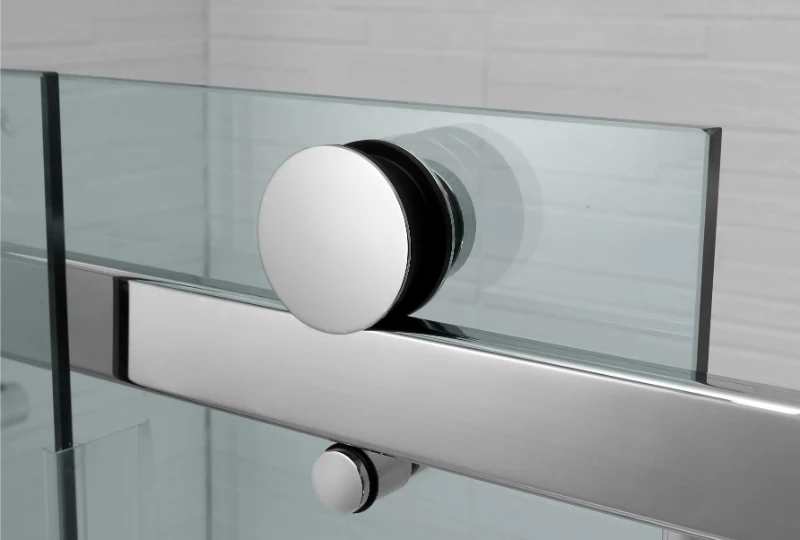

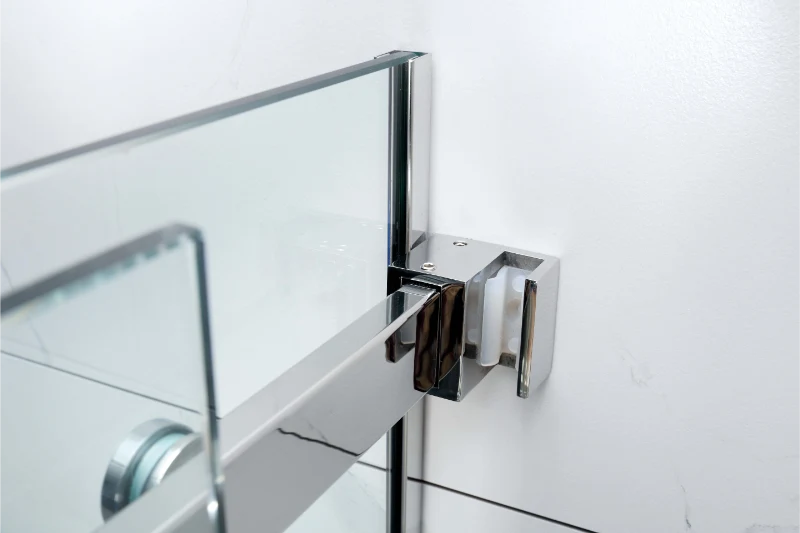

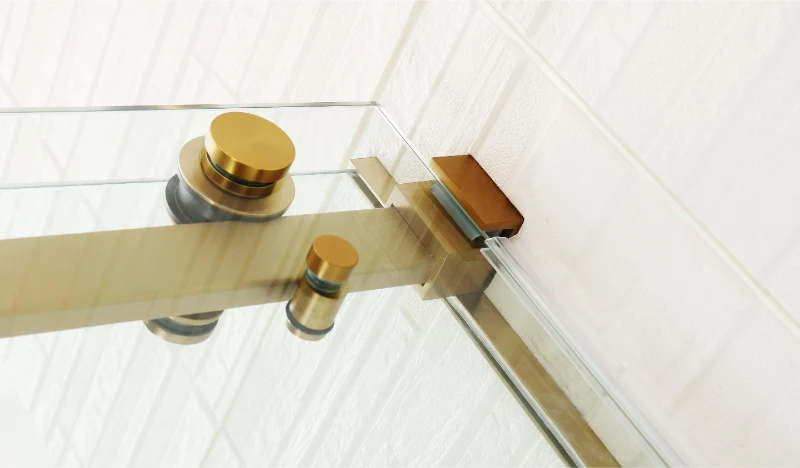

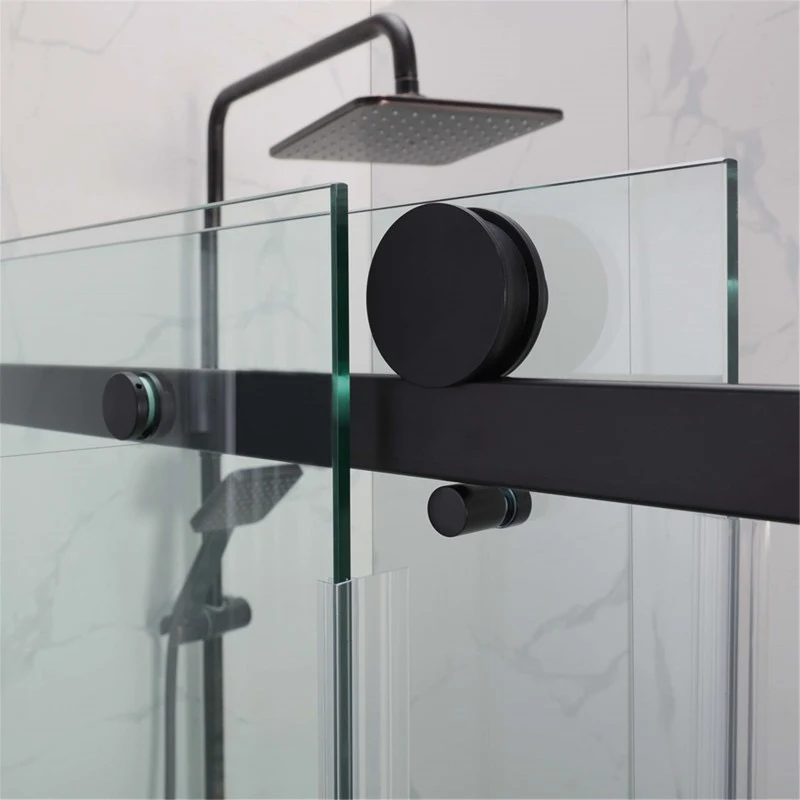

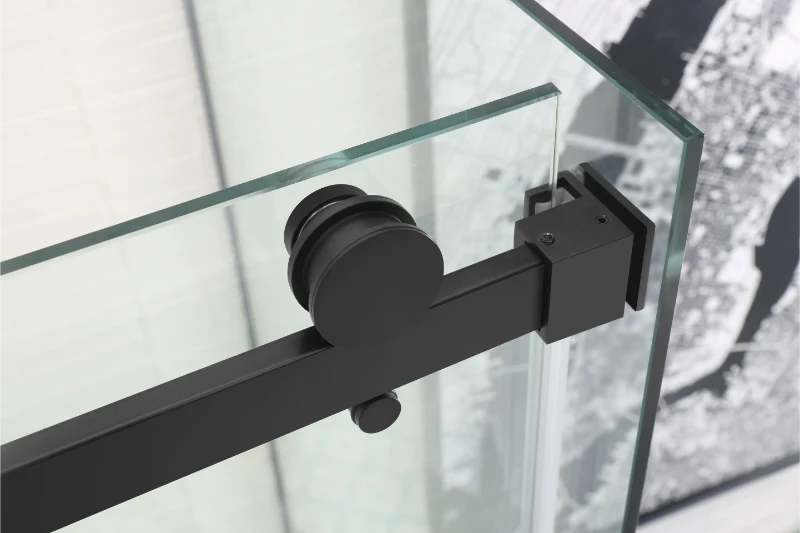

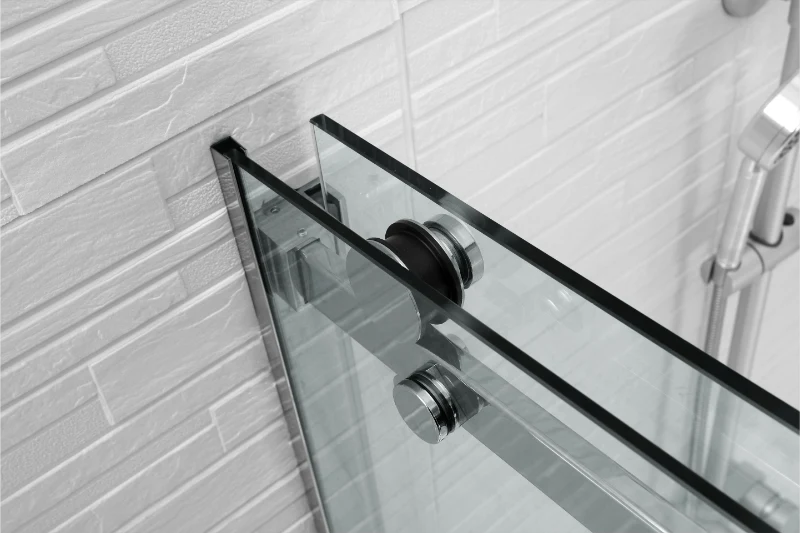

– #304 Stainless steel roller rails and special design brackets, with firm and strong rail bar, soft closing with silence.

Color options

Chrome

Matt Black

Brushed Nickel

Gun Metal

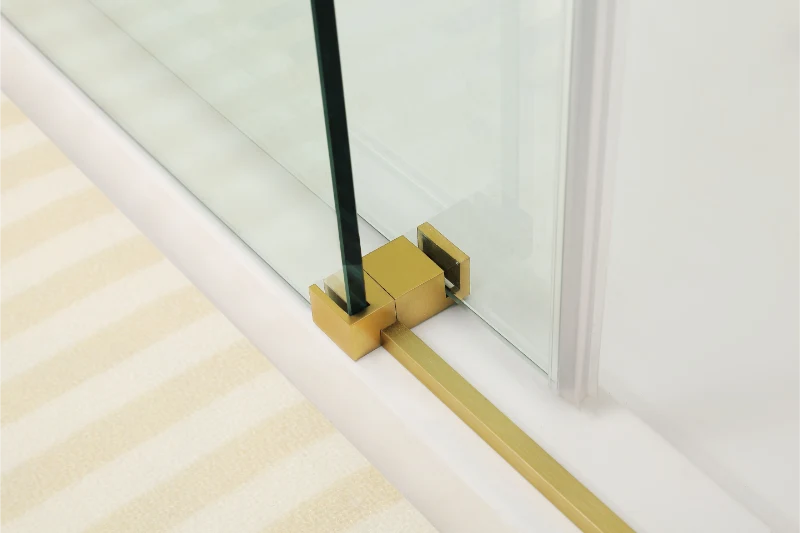

Brushed Gold

Light Gold

Brush Bronze

Available Sizes

CVP031
TECHNICAL PARAMETERS WALL TO WALL SIZES
NO	CONFIGURATION	SKU	SIZES(MM)	Door Glass （mm）	Fixed Glass（mm）	Min Open Space（mm）	Max Open Space（mm）	REMARKS

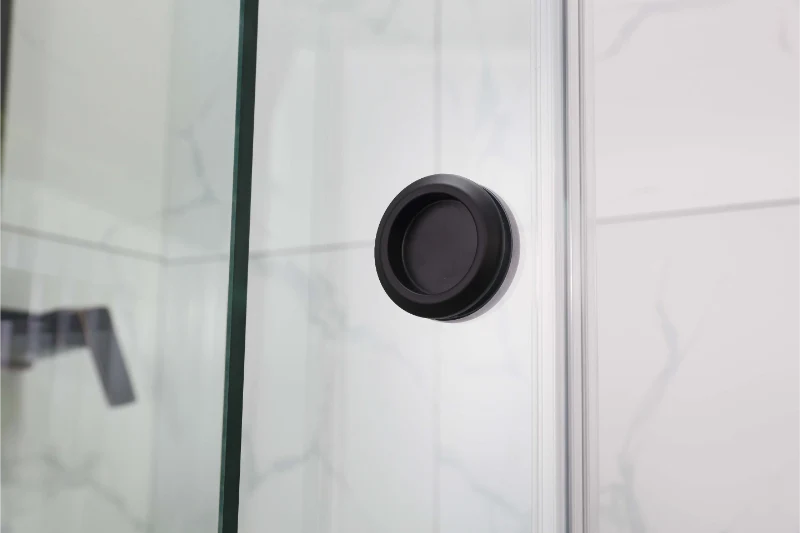

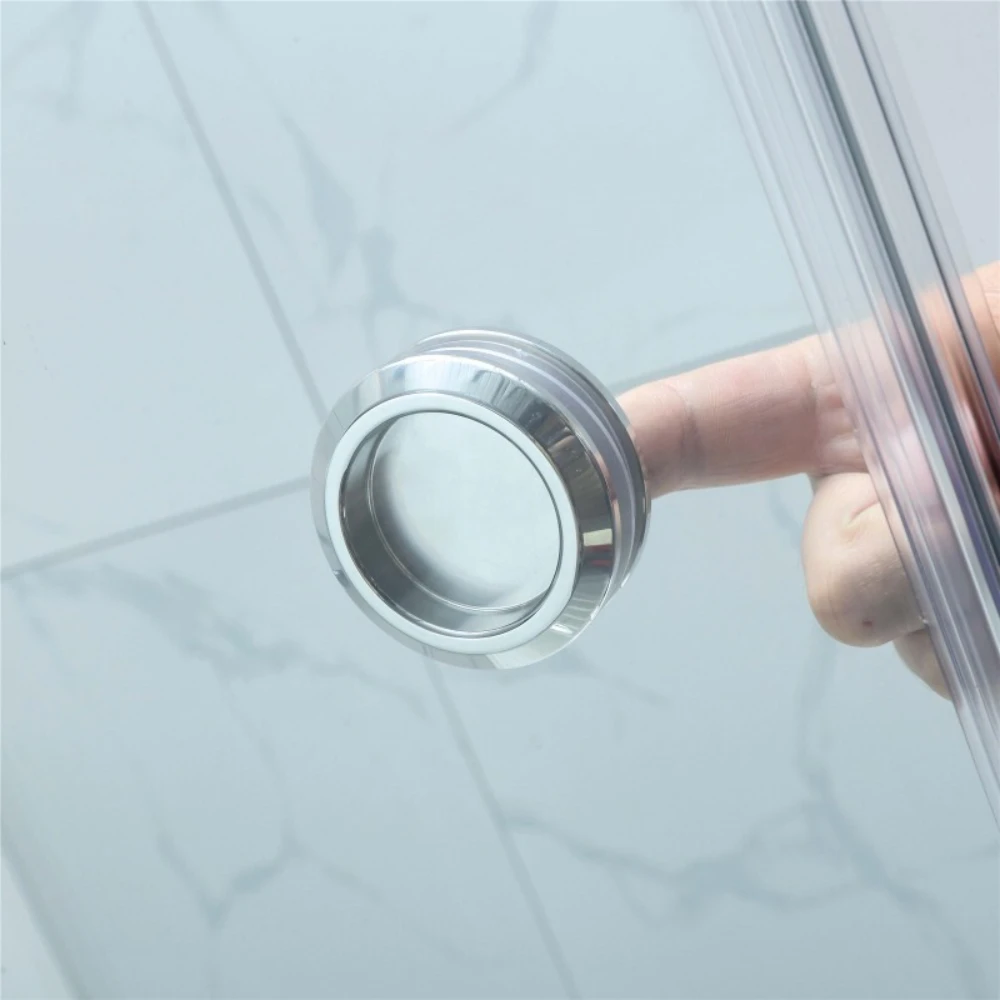

1	Front Door (Wall To Wall)	CVP031W2W870	870-890 (W2W)	435mm	455mm	420mm	440mm	Round Handle
2		CVP031W2W890	890-910 (W2W)	453mm	455mm	430mm	450mm
3		CVP031W2W910	910-950 (W2W)	473mm	475mm	430mm	460mm
4		CVP031W2W950	950-1000 (W2W)	503mm	502mm	440mm	490mm
5		CVP031W2W100	1000-1050 (W2W)	528mm	527mm	462mm	517mm
6		CVP031W2W1050	1050-1130 (W2W)	570mm	567mm	470mm	550mm
7		CVP031W2W1130	1130-1180 (W2W)	620mm	567mm	500mm	555mm

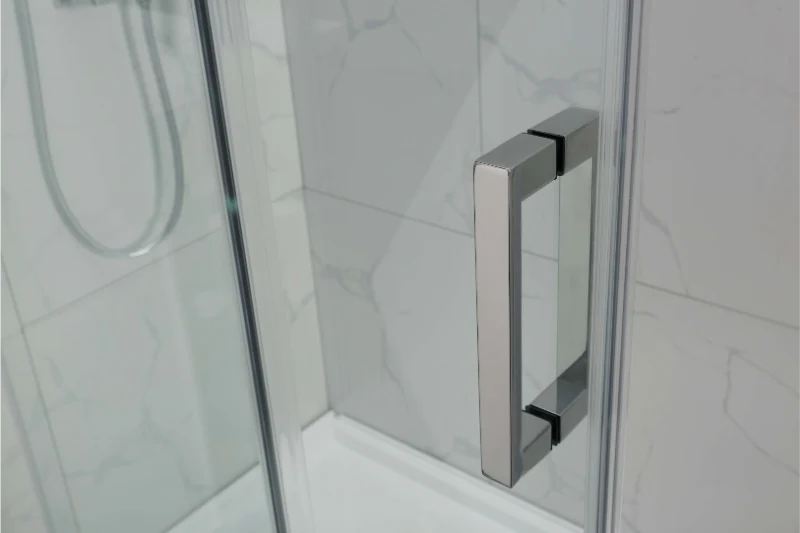

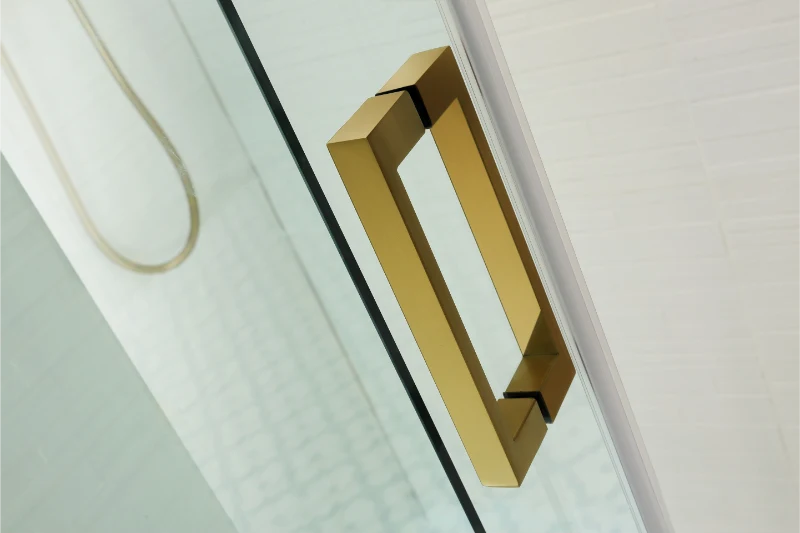

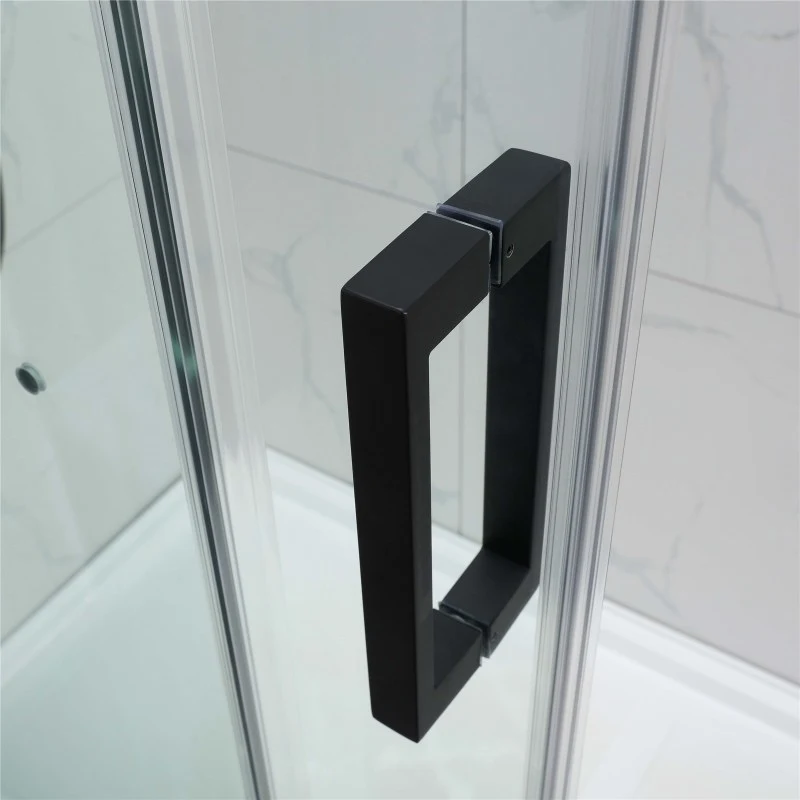

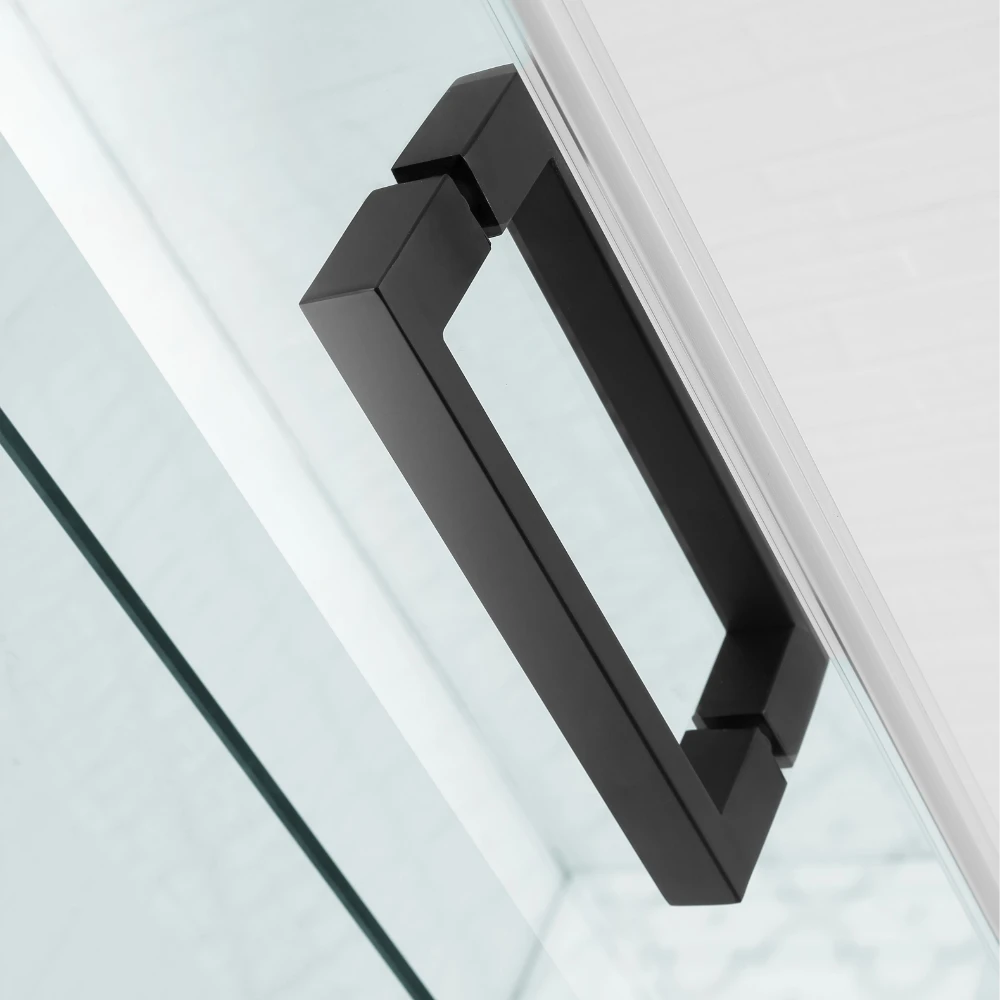

8	Front Door (Wall To Wall)	CVP031W2W1130	1180-1230 (W2W)	670mm	567mm	500mm	555mm	Square Handle
9		CVP031W2W1230	1230-1300 (W2W)	694mm	617mm	526mm	601mm
10		CVP031W2W1300	1300-1450 (W2W)	769mm	692mm	521mm	676mm
11		CVP031W2W1450	1450-1650 (W2W)	869mm	792mm	571mm	776mm
12		CVP031W2W1650	1650-1800 (W2W)	944mm	867mm	696mm	851mm
13		CVP031W2W1800	1800-2000 (W2W)	944mm	1067mm	673mm	878mm
TECHNICAL PARAMETERS RETURN PANELS
NO	CONFIGURATION	SKU	SIZES(MM)	REMARKS (Standard wall chanel is 18mm W, Wider wall channel is 45mm W)
14	Return Panel	CVP031RP800	800mm	Standard Max Install to be 810mm, Wider Max Install to be 835mm
		CVP031RP825	825mm	Standard Max Install to be 835mm, Wider Max Install to be 860mm
15		CVP031RP850	850mm	Standard Max Install to be 860mm, Wider Max Install to be 885mm
		CVP031RP875	875mm	Standard Max Install to be 885mm, Wider Max Install to be 910mm
16		CVP031RP900	900mm	Standard Max Install to be 910mm, Wider Max Install to be 935mm
		CVP031RP925	925mm	Standard Max Install to be 935mm, Wider Max Install to be 960mm
17		CVP031RP950	950mm	Standard Max Install to be 960mm, Wider Max Install to be 985mm
		CVP031RP975	975mm	Standard Max Install to be 985mm, Wider Max Install to be 1010mm
18		CVP031RP1000	1000mm	Standard Max Install to be 1010mm, Wider Max Install to be 1035mm
		CVP031RP1025	1025mm	Standard Max Install to be 1035mm, Wider Max Install to be 1060mm
19		CVP031RP1050	1050mm	Standard Max Install to be 1060mm, Wider Max Install to be 1085mm
		CVP031RP1075	1075mm	Standard Max Install to be 1085m, Wider Max Install to be 1110mm
20		CVP031RP1100	1100mm	Standard Max Install to be 1110mm, Wider Max Install to be 1135mm
21		CVP031RP1150	1150mm	Standard Max Install to be 1160mm, Wider Max Install to be 1185mm
22		CVP031RP1200	1200mm	Standard Max Install to be 1210mm, Wider Max Install to be 1235mm
