Frameless Double Corner Sliding Door Australian Standard 10mm Clear Tempered Toughen Glass Shower Screen L shape Installation

Features

– Made from Australian Standard tempered glass and #304 stainless steel fitting materials
– Fitting finishes colors available with 7 colors refer to Color Option
– Nano-coating is optional for all glass with extra charge
– Can be customized to fit different shower sizes and shapes
– Can be installed as L Shape or Wall to Wall/Inline Direction
– Normal Wall channel allows 10mm and 45mm wall channels allows 20mm for out-of-plumb wall adjustment
– Reversible installation is available

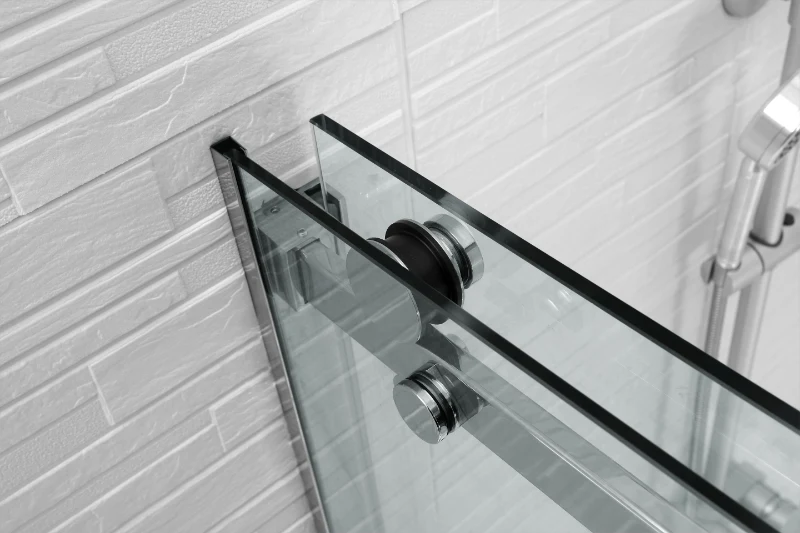

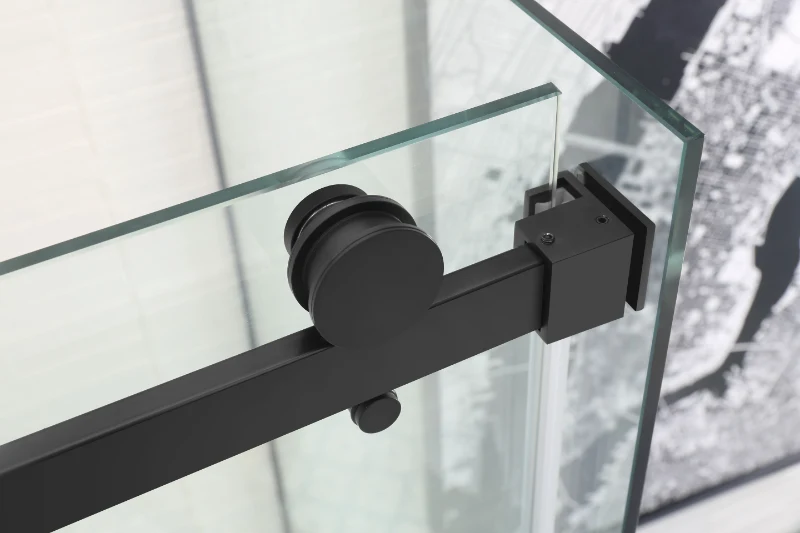

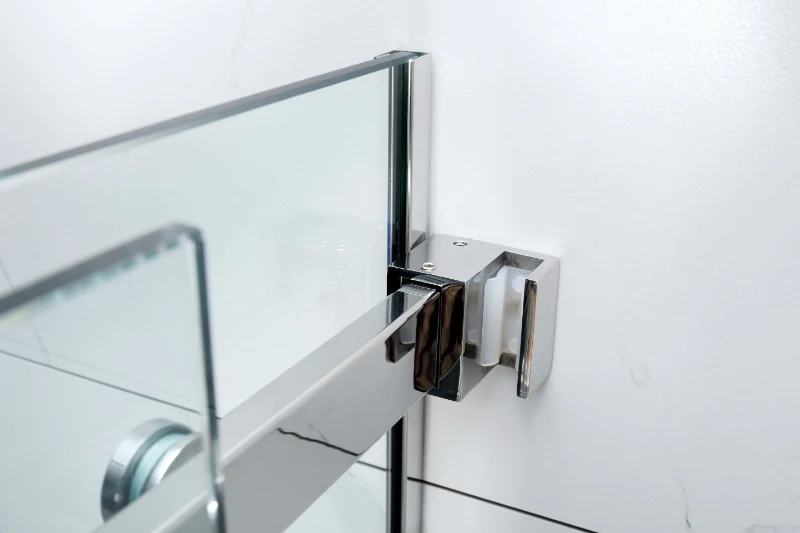

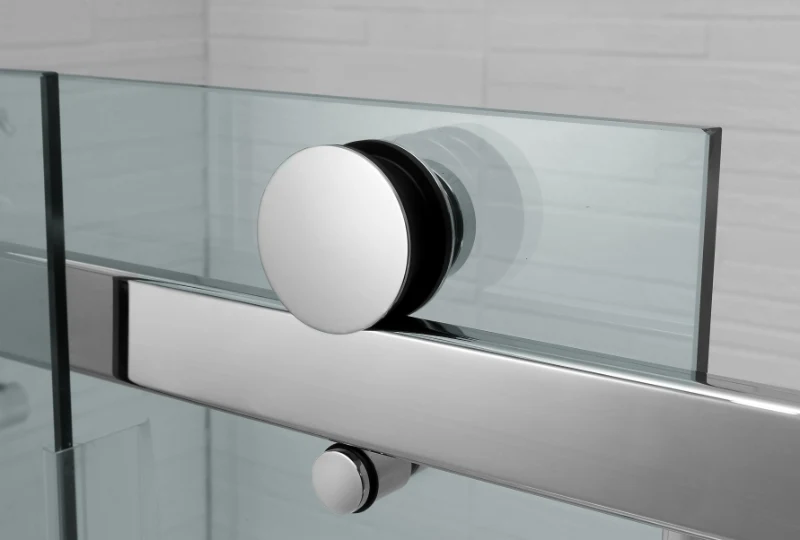

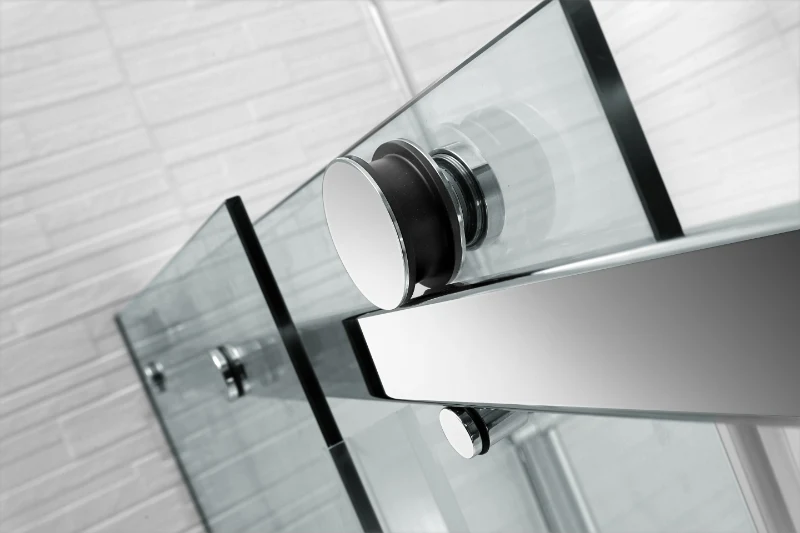

– #304 Stainless steel roller rails and special design brackets, with firm and strong rail bar, soft closing with silence.

Color options

Chrome

Matt Black

Brushed Nickel

Gun Metal

Brushed Gold

Light Gold

Brush Bronze

Available Sizes

CVP031
TECHNICAL PARAMETERS
NO	CONFIGURATION	SKU	SIZES(MM)	Door Glass （mm）	Fixed Glass（mm）	Min Open Space（mm）	Max Open Space（mm）	REMARKS
1	Front Door (Wall To Wall)	CVP031W2W870	870-890 (W2W)	435mm	455mm	420mm	440mm	Round Handle
2		CVP031W2W890	890-910 (W2W)	453mm	455mm	430mm	450mm
3		CVP031W2W910	910-950 (W2W)	473mm	475mm	430mm	460mm
4		CVP031W2W950	950-1000 (W2W)	503mm	502mm	440mm	490mm
5		CVP031W2W100	1000-1050 (W2W)	528mm	527mm	462mm	517mm
6		CVP031W2W1050	1050-1130 (W2W)	570mm	567mm	470mm	550mm
7		CVP031W2W1130	1130-1180 (W2W)	620mm	567mm	500mm	555mm
8	Front Door (Wall To Wall)	CVP031W2W1130	1180-1230 (W2W)	670mm	567mm	500mm	555mm	Square Handle \| Tinted Glass Available
9		CVP031W2W1230	1230-1300 (W2W)	694mm	617mm	526mm	601mm
10		CVP031W2W1300	1300-1450 (W2W)	769mm	692mm	521mm	676mm
11		CVP031W2W1450	1450-1650 (W2W)	869mm	792mm	571mm	776mm
12		CVP031W2W1650	1650-1800 (W2W)	944mm	867mm	696mm	851mm
13		CVP031W2W1800	1800-2000 (W2W)	944mm	1067mm	673mm	878mm		Square Handle
NO	CONFIGURATION	SKU	SIZES(MM)	Fixed Glass（mm）	Door Glass （mm）	Fixed Glass（mm）	Min Open Space（mm）	Max Open Space（mm）	REMARKS
14	Front Door (Wall To Wall)	CVP031W2W3P1420	1400-2000 (W2W)	Provide exact measurements to supplier to check sizes conbination of each glass panel					Listed glass sizes are recommended sizes for standard delivery, if any other sizes required please check and mention requirements to supplier for different conbinations.
15		CVP031W2W3P2000	2000-2050 (W2W)	617mm	769mm	692mm	621mm	671mm
16		CVP031W2W3P2050	2050-2100 (W2W)	692mm	769mm	692mm	596mm	646mm
17		CVP031W2W3P2100	2100-2150 (W2W)	692mm	769mm	692mm	646mm	696mm
18		CVP031W2W3P2150	2150-2200 (W2W)	567mm	869mm	792mm	721mm	771mm
19		CVP031W2W3P2200	2200-2250 (W2W)	617mm	869mm	792mm	721mm	771mm
20		CVP031W2W3P2250	2250-2300 (W2W)	692mm	869mm	792mm	696mm	746mm
21		CVP031W2W3P2300	2300-2350 (W2W)	692mm	869mm	792mm	746mm	796mm
22		CVP031W2W3P2350	2350-2400 (W2W)	792mm	869mm	792mm	696mm	746mm
23		CVP031W2W3P2400	2400-2450 (W2W)	792mm	869mm	792mm	746mm	796mm
24		CVP031W2W3P2450	2450-2530 (W2W)	792mm	944mm	867mm	721mm	801mm
NO	CONFIGURATION	SKU	SIZES(MM)	REMARKS (Standard wall chanel is 18mm W, Wider wall channel is 45mm W)
25	Return Panel	CVP031RP800	800mm	Standard Max Install to be 810mm, Wider Max Install to be 835mm
26		CVP031RP850	850mm	Standard Max Install to be 860mm, Wider Max Install to be 885mm
27		CVP031RP900	900mm	Standard Max Install to be 900mm, Wider Max Install to be 935mm \| Tinted Glass Available
28		CVP031RP950	950mm	Standard Max Install to be 960mm, Wider Max Install to be 985mm
29		CVP031RP1000	1000mm	Standard Max Install to be 1010mm, Wider Max Install to be 1035mm \| Tinted Glass Available
30		CVP031RP1050	1050mm	Standard Max Install to be 1060mm, Wider Max Install to be 1085mm
31		CVP031RP1100	1100mm	Standard Max Install to be 1110mm, Wider Max Install to be 1135mm
32		CVP031RP1150	1150mm	Standard Max Install to be 1160mm, Wider Max Install to be 1185mm
33		CVP031RP1200	1200mm	Standard Max Install to be 1210mm, Wider Max Install to be 1235mm
