Frameless Sliding Bathtub Screen

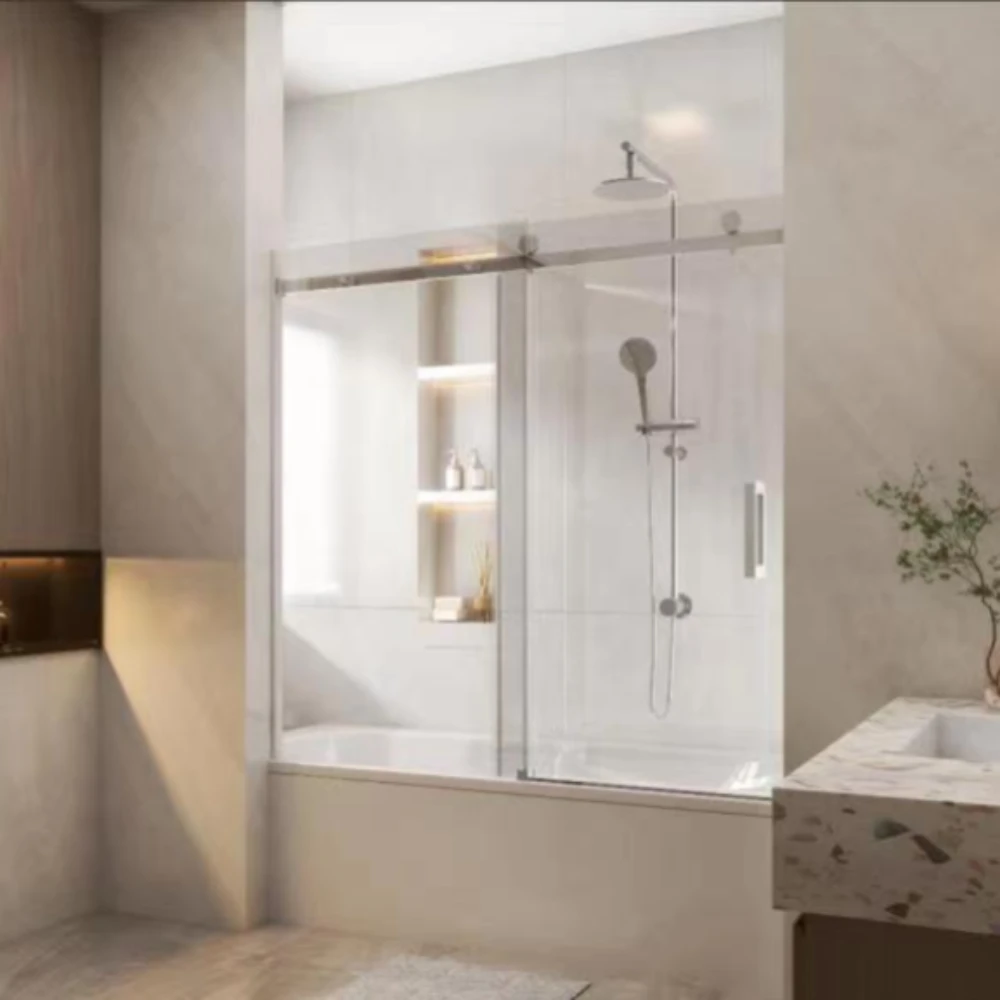

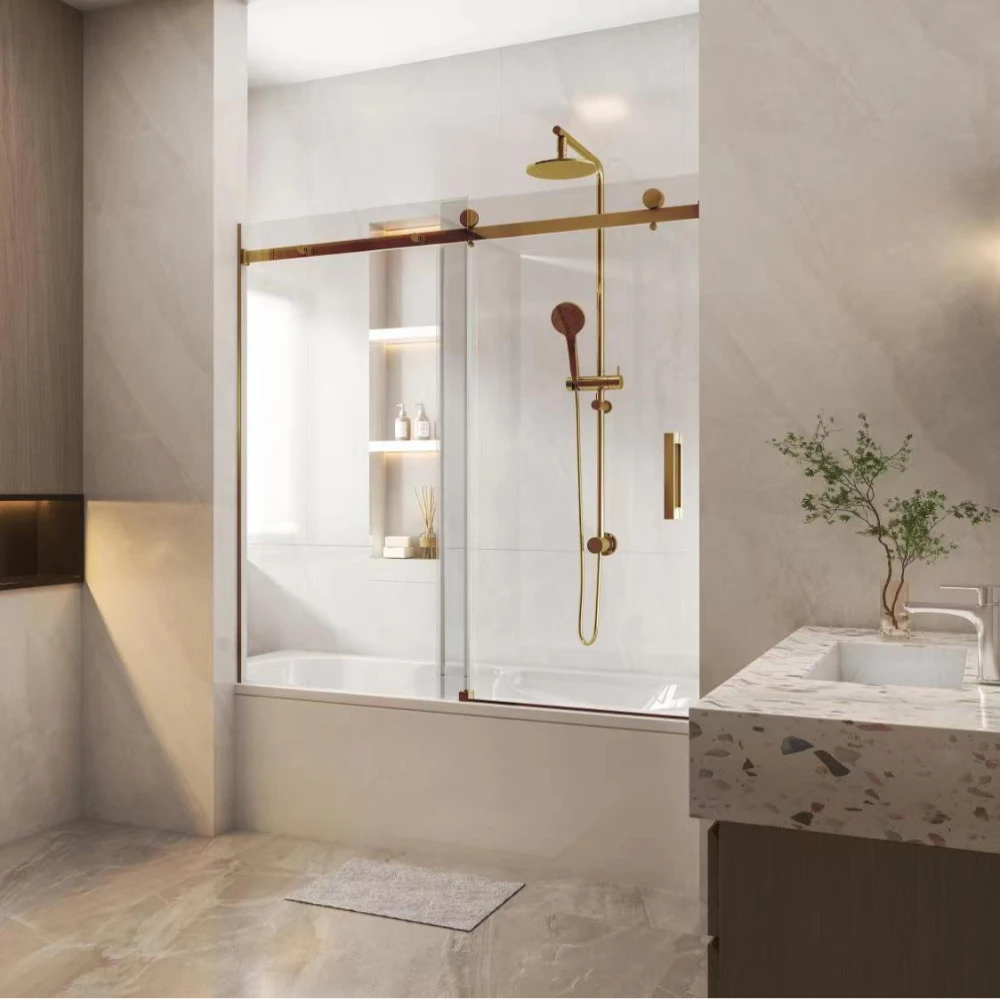

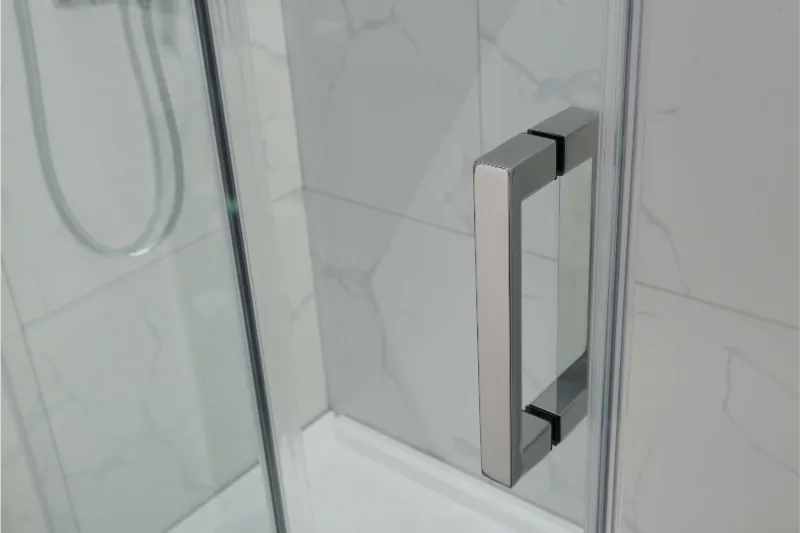

Bathtub Single Sliding Door Wall to Wall Square Handle Australian Standard 10mm Tempered Toughen Glass Shower Screen
Features
– Made from Australian Standard tempered glass and #304 stainless steel fitting materials
– Fitting finishes colors available with Chrome and Black
– Nano-coating is optional for all glass with extra charge
– Can be installed as Wall to Wall/Inline Direction

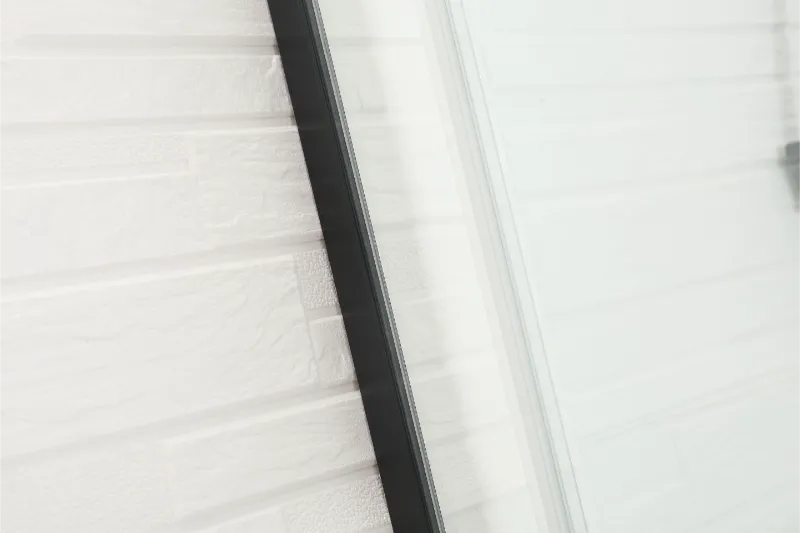

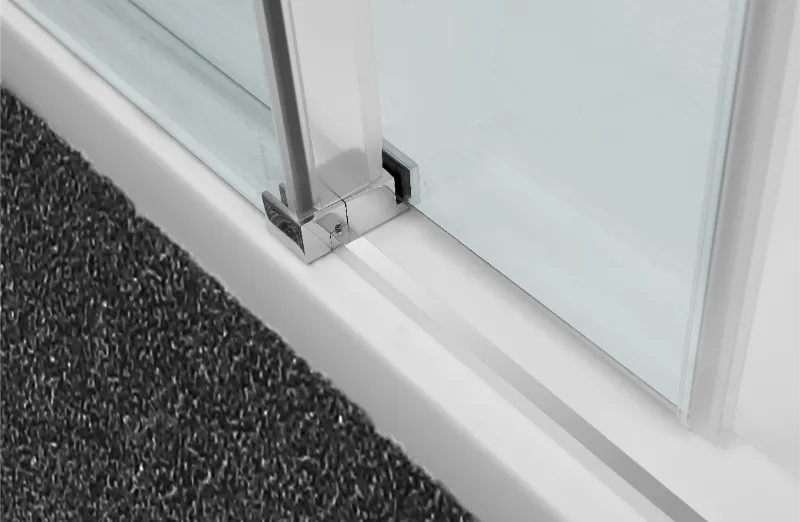

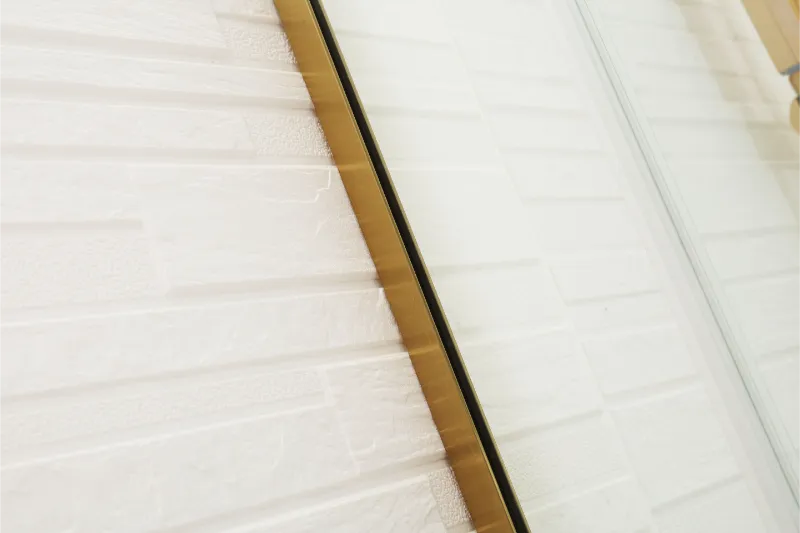

– Wall channel allows 10mm for out-of-plumb wall adjustment
– Reversible installation is available
– Standard Height 1500mm
Color options
Chrome

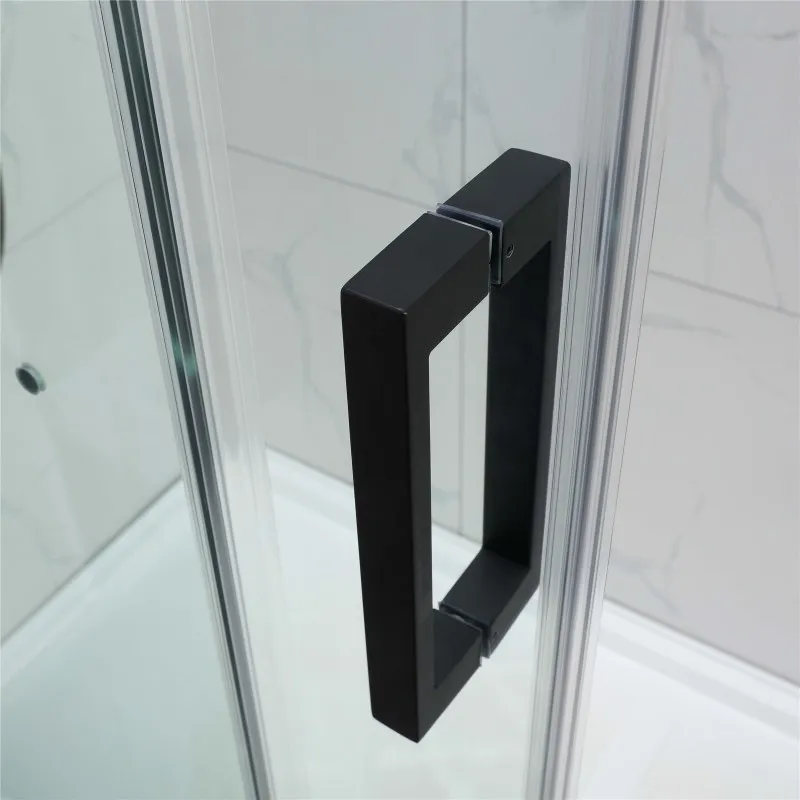

Matt Black
Brushed Nickel
Gun Metal

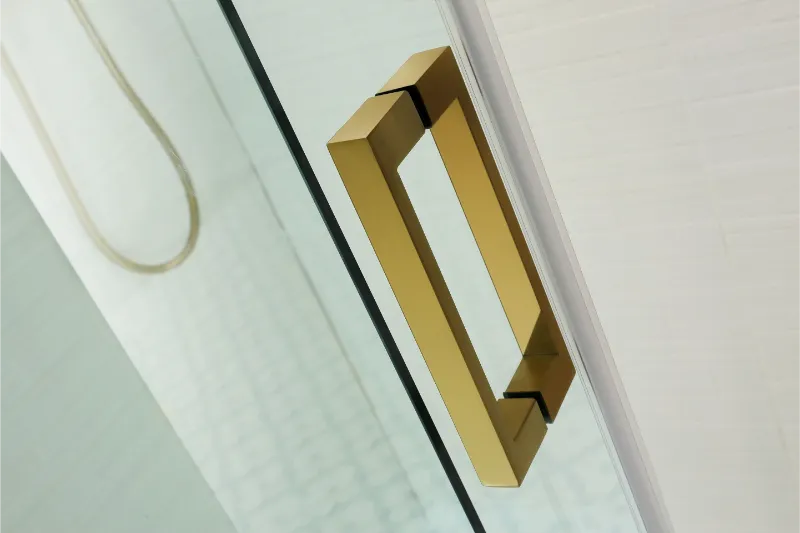

Brushed Gold
Light Gold
Brush Bronze
Available Sizes
| CVP032 | ||||||||
|---|---|---|---|---|---|---|---|---|
| TECHNICAL PARAMETERS | ||||||||
| NO | NAME | SKU | SIZES(MM) | DOOR(MM) | FIX (MM) | MIN OPEN SPACE | MAX OPEN SPACE | REMARKS |
| 1 | Bathtub Single Sliding Door | CVP032BS1450 | 1450-1550mm | 819mm | 742mm | 620mm | 720mm | * Standard Height 1600mm * Customized Glass types and sizes is acceptable * Glass type option: – Clear Glass – Ultra Clear Glass – Tinted Grey Glass – Fluted Glass – Frosted/Matelux |
| 2 | CVP032BS1650 | 1650-1800mm | 944mm | 696mm | 846mm | |||
Customization Available
- Do you need a Wall to Wall OR L Shape Shower screens for your bathroom?
- Do you prefer to Frameless or Semi-frameless Shower screens for your bathroom?
- What color of the Fittings/Frame you would like for the shower screens?
- What kind of glass type/ pattern you would like to apply on the shower screens?
- Do you need a Nano coating technology for your shower screens?
- How many sets shower screens you would like to order?
- Which suburbs or post code the bathroom located in?
- Please enclose photos of your bathrooms and consult our dealers to get a quote.
